Features

The Mµ64 acquisition system is designed for the synchronous acquisition of data from MEMS microphones grouped in bundles of 8 units (up to 64 channels) and signals from two analog channels. It is controlled via a USB3 interface. Signals are digitized at 24 bits at a frequency of up to 50 kHz.

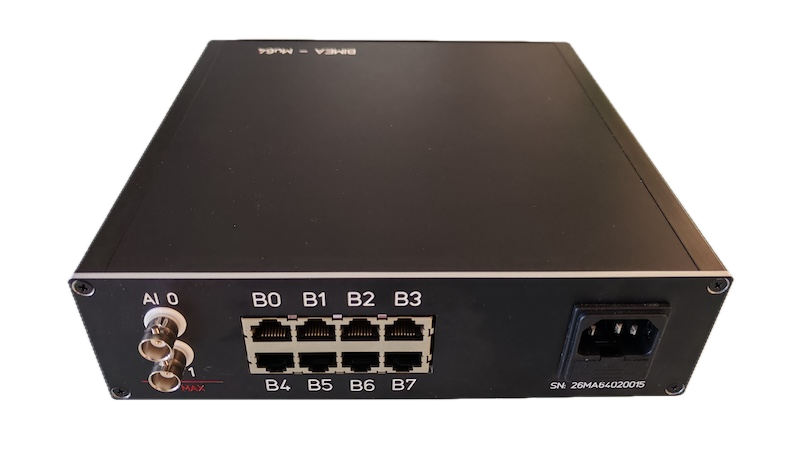

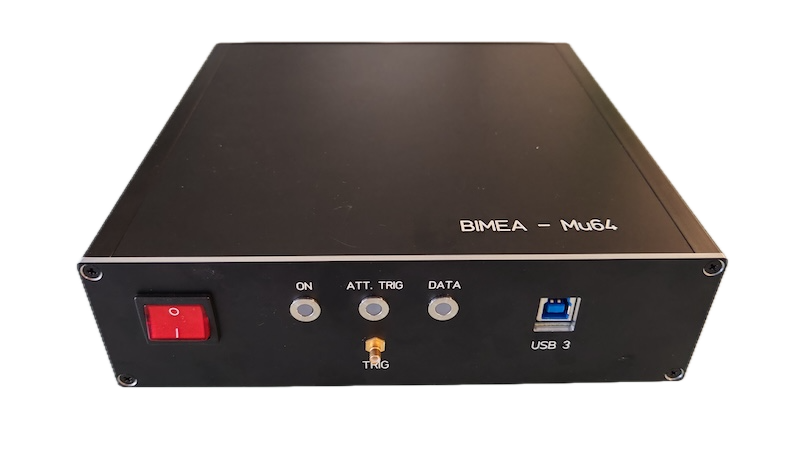

MU64 Front ViewMU64 Front View
  • From 1 to 64 channels synchronous acquisition
  • Sampling rates from 10 kHz to 50kHz (48 kHz optional)
  • USB3 PC connection
  • External triggering
  • Two analog channels
  • Real-time acquisition software
  • Python processing library
