Features

The Mµ32+ acquisition system is designed for the synchronous acquisition of data from MEMS microphones grouped in bundles of 8 units (up to 32 channels) and signals from an analog channel in the case of Mµ32+ (VA) models. It is controlled via a USB3 interface. Signals are digitized at 24 bits at a frequency of up to 50 kHz.

The Mu32+ has the same features as the Mu32. It also includes one or two analog channels.

MU64 Front ViewMU64 Front View
  • From 1 to 32 channels synchronous acquisition
  • Sampling rates from 10 kHz to 50kHz (48 kHz optional)
  • USB3 PC connection
  • External triggering

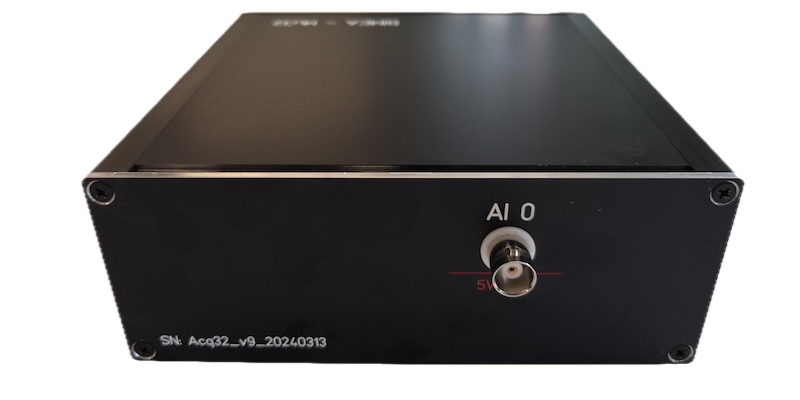

  • One or two analog channels
  • Real-time acquisition software
  • Python processing library
